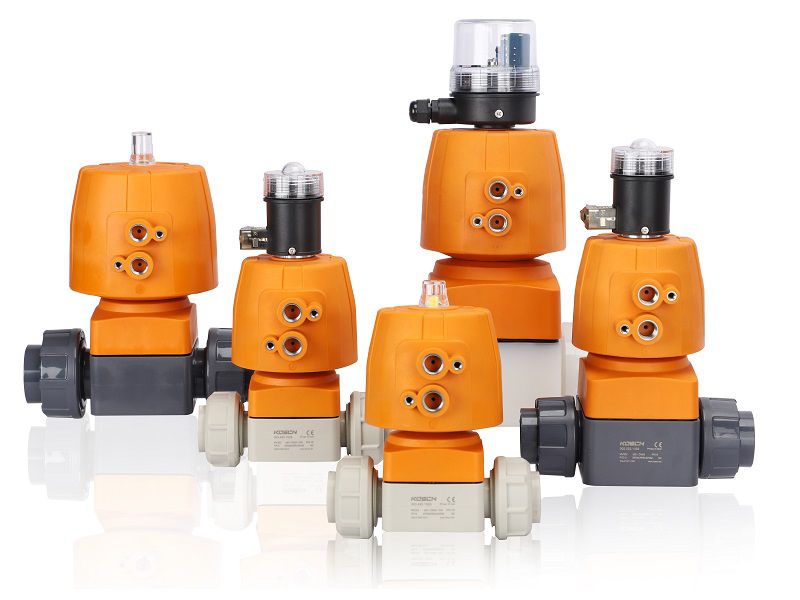

Pneumatic Diaphragm Valve, MV303

Pneumatic Actuated Diaphragm Valve for Chemical Process

Pneumatic Diaphragm Valve, MV303

MV303 pneumatic diaphragm valves features innovative valve flow passage design and improved mechanical structure, leading to larger flow rate. Configurated with PN 10 pressure level, this diaphragm valve is suitable for applications in water piping systems and chemical fluid systems.

Contact Us
Operating Instruction Datasheet

Specifications

    1. Size
      DN 15/20/25/32/40/50/65
    1. Pressure Level
      PN 10
    1. Body Material
      PVC-U, PVC-C, PP-H, PVDF, PP-Natural
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
    1. Connection
      flange, spigot, true union (socket or spigot)
    1. Standard
      DIN, JIS, ANSI

Features

Easy installation and maintenance

  • Independent actuator for easy replacement and dismounting
  • With pilot operated solenoid valve mounting base for quick installation
  • Position indicator configured with protective shield adapted to outdoor and harsh working environments
  • Absence of metal parts exposed to the external environment to prevent any risk of corrosion
  • Excellent lubrication performance and maintenance free
  • Air inlet direction is optional at 90°intervals.
  • Perfect for installation in limited space
  • Same installation length as market standard valves

Outstanding safety

  • Insert-molded threaded connection suitable for different installation strengths.
  • Valve flow passage and pneumatic actuator overpressure design for improved safety
  • Smoothened valve flow passage design for better protection from water hammer

Excellent flexibility in configuration

  • Connection: flange, spigot, true union (socket or spigot)
  • Connection standard: metric, US, JP
  • Diaphragm: EPDM, FPM, EPDM-PTFE
  • Valve body: PVC-U, PVC-C, PP-H, PVDF, PP-Natural
  • PP-H, PVDF pneumatic diaphragm valves offer oil-free options

Best flow control performance

  • Smoothened flow path profile leads to lower loss of pressure and double flow rate
  • Linear flow characteristics for more accurate fluid control
  • Suitable for media containing a small number of particles and solids

Application

  • Water treatment
  • Power industry
  • Steel
  • Metallurgy
  • Petrochemical industry
  • Chemical engineering
  • Marine engineering
  • PV
  • Nuclear
  • Wind energy
  • Chlor-Alkali
Contact Us
Building A2, Hengli Industrial Park, Tongde, Baolong Sub-District, Longgang District, Shenzhen City, Guangdong Province, China
shengzhou.zhang@koscn.com
Shengzhou Zhang
+86-13823725628
+86-755-25325380

Get in Touch

Manual Diaphragm Valve, MV301
Manual Diaphragm Valve, MV301

MV301 manual diaphragm valve is a newly developed membrane valve with multifunctional regulating modules, ergonomic design, limit switches and locking system.

    1. Size
      DN 15/20/25/32/40/50/65
    1. Pressure Level
      PN 10
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More
Pneumatic Diaphragm Valves, MV300
Pneumatic Diaphragm Valves, MV300

MV300 pneumatic diaphragm valves feature integrated pneumatic actuator and good flow performance due to optimal design of flow path profile.

    1. Size
      DN 15 (1/2”)
    1. Pressure Level
      PN 6
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More
Pneumatic Diaphragm Valve, MV302
Pneumatic Diaphragm Valve, MV302

MV302 pneumatic diaphragm valves are designed with compact and economic design, integrated pneumatic actuator, improved diaphragm mechanism, and best flow control performance.

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 6
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More
