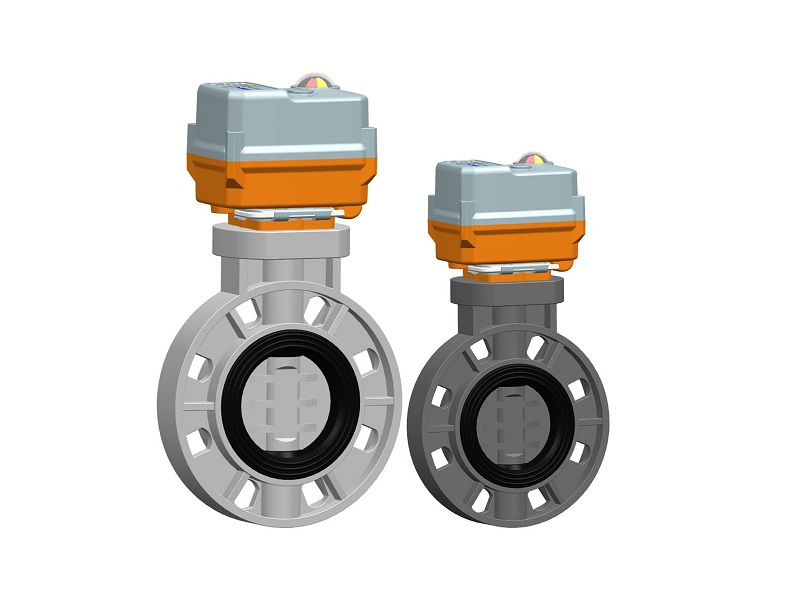

Electric Actuated Butterfly Valve, KV401
Plastic Butterfly Valve with Electric Actuator
KV401 electric actuated butterfly valve is a multifunctional and intelligent plastic valve to deliver functions like switch control, flow regulation, signal feedback, auto reset and failure alarm. This plastic butterfly valve is an economical choice for environmental industry.
Specifications
-
- Size
- DN 50/65/80/100/125/150/200
-
- Pressure Level
- PN 10/8
-
- Body Material
- PVC-U, PP-H
-
- Seal
- EPDM, FPM
-
- Control accuracy
- ±1%
-
- Connection
- flange
-
- Standard
- ISO 5211 standard
Features
Easy installation and maintenance
- ISO mounting holes standard for easy mounting
- Switch direction indication on the handwheel
- ISO 5211 standard design for simple maintenance
- Interchangeable manual and auto modules for easy upgrade
- Plastic or aluminum actuator with compact design
Outstanding safety
- Stainless steel valve shaft with corrosion and deformation resistance
- Double seals in valve seat leads to lower stem torque and no leakages
- A wide range of materials and seals are optional to meet most media applications
- Actuator designed with over torque protection to ensure safety
Excellent flexibility in configuration
- Valve body: PVC-U, PP-H
- Connection: flange
- Connection Standards: metric, US, JP
- Actuator: NC (normally closed), NO (normally open), DA (direct acting)
- Seal: EPDM, FPM
- Optional electric switch, regulating module, bus communication
- Signal feedback, power-off rest, failure alarm
Electrical configuration
- Voltage: AC/DC12-24V, AC/DC95-265V
- Feedback: passive contact, active contact, potentiometer feedback
- Optional: relay contact failure alarm
- With super capacitor, auto reset after power-off is available.
- Output: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V, 2-10V
- Regulation current: 4-20mA
- Bus control feedback: RS485(modbus), CANBus 2.0B, Mbus
- Protection rating: IP67
Application
- Environmental industry
- Water treatment
- Electroplate
- Integrated circuit
- Renewable energy
- Landfill leachate treatment
