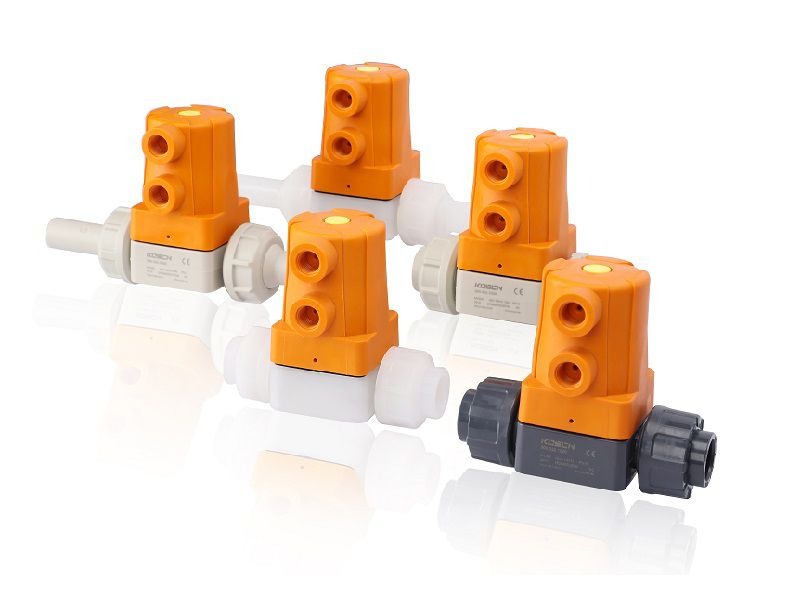

Pneumatic Diaphragm Valves, MV300

Plastic Pneumatic Actuated Diaphragm Valve

Pneumatic Diaphragm Valves, MV300

MV300 pneumatic diaphragm valves feature integrated pneumatic actuator and good flow performance due to optimal design of flow path profile. This corrosion resistant valve is available with a variety of size ranges, body materials, sealing materials (elastomers) and end connections to suit different applications.

Contact Us
Operating Instruction Datasheet

Specifications

    1. Size
      DN 15 (1/2”)
    1. Pressure Level
      PN 6
    1. Body Material
      PVC-U, PVC-C, PP-H, PVDF, PP-Natural
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
    1. Connection
      true union (socket or spigot)
    1. Standard
      DIN 8063, ISO 9393

Features

Easy installation and maintenance

  • Integrated compact design for easy installation in limited space
  • Absence of metal parts exposed to the external environment to prevent any risk of corrosion
  • Built-in diaphragm with extended lifespan
  • Excellent lubrication performance and maintenance free
  • Threaded true unions
  • Same installation length as market standard valves
  • Integrated optical position feedback
  • Identification on valves is laser engraved to ensure legibility after long-time use

Outstanding safety

  • Valve flow passage and pneumatic actuator overpressure design for safety
  • Broadest range of materials optional including high temperature and corrosion resistant materials
  • Optimized flow passage design for efficient closure in high flow rate applications
  • High temperature resistant diaphragm. Improved sealing performance.

Excellent flexibility in configuration

  • Actuator: NC (normally closed), NO (normally open), DA (direct acting)
  • Diaphragm: EPDM, FPM, PTFE,
  • Media: water, acid or alkaline
  • Valve body: PVC-U, PVC-C, PP-H, PVDF, PP-Natural
  • Connection standard: metric, US, JP
  • Excellent quality and reliability for high number of switching cycles

Best flow control performance

  • Linear flow characteristics for easy control
  • Double flow rate due to unique valve flow passage design
  • Suitable for media containing a small number of particles and solids

Application

  • PV
  • Glass panel
  • PCB
  • Electroplate
  • LCD
  • Semiconductor
  • Paper making
Contact Us
Building A2, Hengli Industrial Park, Tongde, Baolong Sub-District, Longgang District, Shenzhen City, Guangdong Province, China
shengzhou.zhang@koscn.com
Shengzhou Zhang
+86-13823725628
+86-755-25325380

Get in Touch

Pneumatic Diaphragm Valve, MV302
Pneumatic Diaphragm Valve, MV302

MV302 pneumatic diaphragm valves are designed with compact and economic design, integrated pneumatic actuator, improved diaphragm mechanism, and best flow control performance.

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 6
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More
Pneumatic Diaphragm Valve, MV303
Pneumatic Diaphragm Valve, MV303

MV303 pneumatic diaphragm valves features innovative valve flow passage design and improved mechanical structure, leading to larger flow rate. Configurated with PN 10 pressure level ...

    1. Size
      DN 15/20/25/32/40/50/65
    1. Pressure Level
      PN 10
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More
Manual Diaphragm Valve, MV301
Manual Diaphragm Valve, MV301

MV301 manual diaphragm valve is a newly developed membrane valve with multifunctional regulating modules, ergonomic design, limit switches and locking system.

    1. Size
      DN 15/20/25/32/40/50/65
    1. Pressure Level
      PN 10
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More
