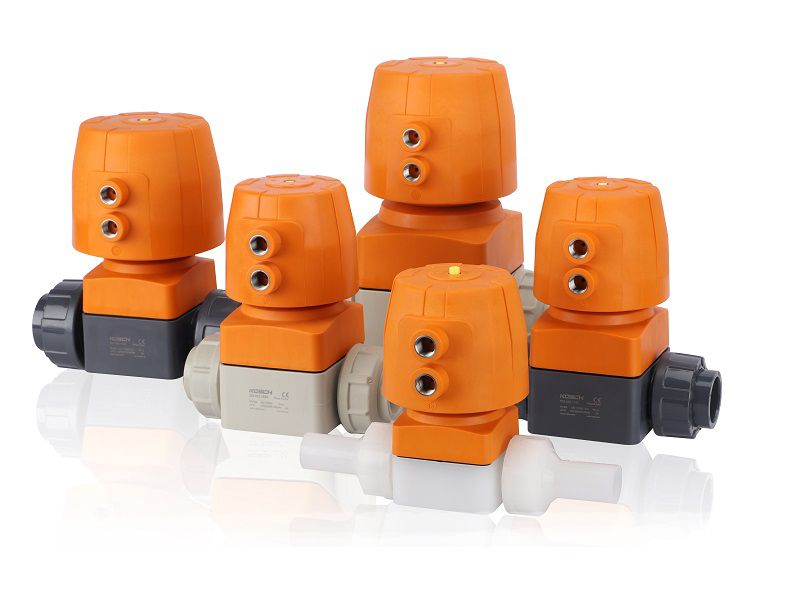

Pneumatic Diaphragm Valve, MV302

Pneumatic Actuated Diaphragm Valve in Plastic

Pneumatic Diaphragm Valve, MV302

MV302 pneumatic diaphragm valves are designed with compact and economic design, integrated pneumatic actuator, improved diaphragm mechanism, and best flow control performance. With compact design and PN 6 pressure level, this plastic diaphragm valve provides a lost-cost valve solution for piping systems of environmental, chemical, electronic, municipal, and other industries.

Contact Us
Operating Instruction Datasheet

Specifications

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 6
    1. Body Material
      PVC-U, PVC-C, PP-H, PP-Natural, PVDF
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
    1. Connection
      true union (socket or spigot)
    1. Standard
      DIN, JIS, ANSI

Features

Easy installation and maintenance

  • Easily dismountable with thread connection
  • Corrosion free due to full plastic housing design
  • Optimized air inlet design with low vibration
  • Same installation length as market standard valves
  • Integrated optical position feedback with easy observation
  • Excellent lubrication performance and maintenance free
  • Air inlet direction is optional at 90°intervals
  • Perfect for installation in limited space

Outstanding safety

  • Suspension type diaphragm coupling mechanism to protect diaphragm
  • Valve flow passage and pneumatic actuator overpressure design for improved safety
  • Optimized flow path profile for efficient closure in high flow rate applications

Excellent flexibility in configuration

  • Connection: true union (socket or spigot)
  • Connection standard: metric, US, JP
  • Diaphragm: EPDM, FPM, EPDM-PTFE
  • Valve body: PVC-U, PVC-C, PP-H, PP-Natural, PVDF
  • Oil-free options available

Best flow control performance

  • Linear flow characteristics for easy control
  • Double flow rate due to unique valve flow passage design
  • Suitable for media containing a small number of particles and solids

Application

  • Landfill leachate treatment
  • PV
  • PCB
  • Electroplate
  • LCD
  • Semiconductor
  • Papermaking
  • Mining & metallurgy
Contact Us
Building A2, Hengli Industrial Park, Tongde, Baolong Sub-District, Longgang District, Shenzhen City, Guangdong Province, China
shengzhou.zhang@koscn.com
Shengzhou Zhang
+86-13823725628
+86-755-25325380

Get in Touch

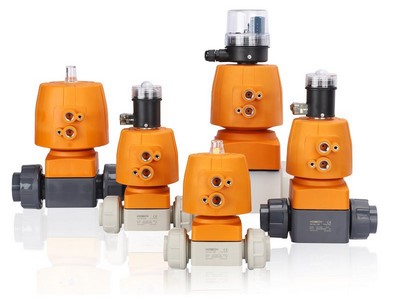

Pneumatic Diaphragm Valve, MV303
Pneumatic Diaphragm Valve, MV303

MV303 pneumatic diaphragm valves features innovative valve flow passage design and improved mechanical structure, leading to larger flow rate. Configurated with PN 10 pressure level ...

    1. Size
      DN 15/20/25/32/40/50/65
    1. Pressure Level
      PN 10
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More

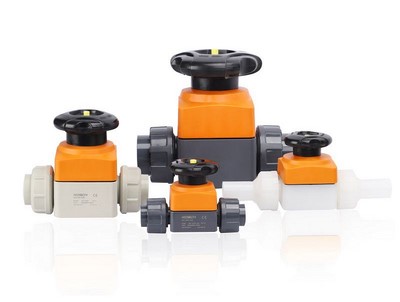

Manual Diaphragm Valve, MV301
Manual Diaphragm Valve, MV301

MV301 manual diaphragm valve is a newly developed membrane valve with multifunctional regulating modules, ergonomic design, limit switches and locking system.

    1. Size
      DN 15/20/25/32/40/50/65
    1. Pressure Level
      PN 10
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More

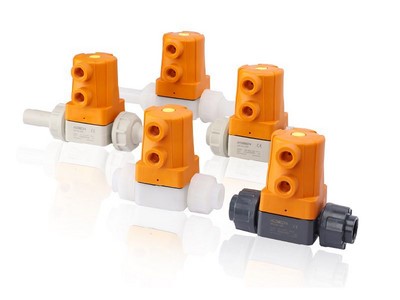

Pneumatic Diaphragm Valves, MV300
Pneumatic Diaphragm Valves, MV300

MV300 pneumatic diaphragm valves feature integrated pneumatic actuator and good flow performance due to optimal design of flow path profile.

    1. Size
      DN 15 (1/2”)
    1. Pressure Level
      PN 6
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
More

KOSCN is a professional manufacturer of flow control products. Our product range includes plastic valves, pneumatic actuators, pressure sensors and piping systems. We offer industrial plastic valves in various sizes, of different materials and for different pressure ranges, guaranteeing the right valve for any piping system. Manual, pneumatic, or electric actuators for valves are optional to best fit your application requirements.
Our plastic valves and piping systems are good low-cost solutions for flow control needs in various applications, including waste/wastewater disposal, chemical processing, metallurgy, landfill leachate processing, integrated circuit manufacturing, semiconductor manufacturing, glass panel processing, food and beverage, paper making, power industry, bio pharmacy and more.
KOSCN has obtained multiple patents and is a national high-tech enterprise. We have professional teams for product design and development, manufacturing, mold production, injection molding and quality control. Our quality management system is in strict accordance with ISO9001, ISO140001, ISO45001 to ensure the excellent reliability and outstanding durability of products.
