Pressure Transmitter/ Pressure Sensor, PS700

Pressure Transmitter/ Pressure Sensor, PS700

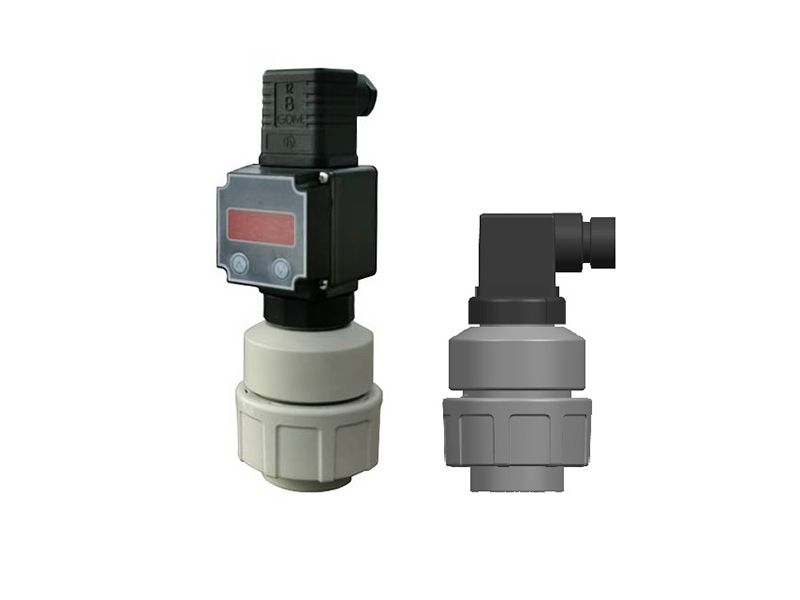

KOSCN pressure transmitter PS700 is a compact and economic industrial pressure measurement instrument with full plastic housing design. Integrating ASIC approved ceramic piezoresistive sensor unit and featuring high precision, and high corrosion resistance, the pressure sensors are ideal for corrosive media application or in severe working environments.

Contact Us
Specification Sheet Datasheet

Specifications

    1. Measuring Range
      0~0.3bar, 0.6bar, 1bar, 2.5bar, 5bar, 10bar, 16bar
    1. Medium wetted parts
      PVC-U, PVC-C, PP, PVDF
    1. Seal
      EPDM, FPM, FKM
    1. Connection Standard
      DIN, JIS, ANSI
    1. Accuracy
      ≤±0.25%, 0.5% FS
    1. Connection Size
      G1-1/4,DN20
    1. Pressure measuring range is customizable and this pressure measuring instrument can be used to measure absolute pressure.

Features

  • Medium wetted diaphragm: AL2O3 96%
  • METALLUX highly stable sensor unit
  • Temperature compensation marked by laser trimming technology ensures the measuring accuracy.
  • Accuracy: ≤±0.25%, 0.5% FS
  • Overload: 200% FS
  • Output signal: 4~20 mA
  • Voltage range: 24V± 20%
  • Mode of connection: 2 wire connection
  • Ambient temperature: -10~80℃
  • Relative humidity: 20~80%

Easy operation and maintenance

  • Full plastic housing design for aesthetic appearance and high corrosion resistance
  • Integrated mechanical and electrical construction
  • ISO standard electrical connection ports
  • Unsealed thread with loose joint connection

Outstanding safety

  • IP65 protection
  • Explosion-proof pressure sensors customizable according to the specific requirements
  • Corrosion-free and leakproof configuration
  • Clogging prevention

Application

  • Integrated circuit
  • Power industry
  • Mining & metallurgy
  • Chemical engineering
  • Glass panel
  • Chlor-Alkali
