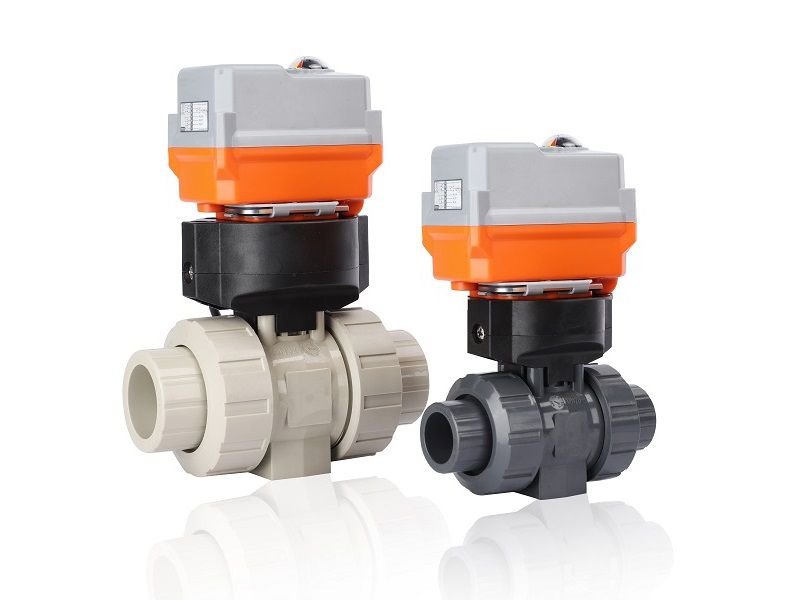

Electric Ball Valve, BV201

Electric Actuated Ball Valve in Plastic

Electric Ball Valve, BV201

BV201 electric ball valve is a multifunctional plastic valve to offer various functions including intelligent switch control, flow regulating, signal feedback, auto reset, failure alarm. Full plastic housing design makes this ball valve a perfect choice for application in harsh working environments.

Contact Us
Datasheet

Specifications

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 10
    1. Body Material
      PVC-U, PVC-C, PP-H, PVDF
    1. Seal
      EPDM, FPM
    1. Connection
      true union (socket or spigot), flange
    1. Standard
      ISO 5211 standard

Features

Easy installation and maintenance

  • The optimized locking mechanism of ball valve allows installation in two directions.
  • ISO 5211 standard design with easy maintenance
  • Valve body and actuator are installed by standard installation parts
  • All plastic or extruded aluminum actuator in compact design, suitable for limited space installation
  • Mounting base provided

Outstanding safety

  • Trapezoidal threaded union to prevent pop-off
  • Double seal valve base with low torque and without internal leakage
  • Broadest range of materials optional including high temperature and corrosion resistant materials
  • Actuator designed with over torque protection to ensure safety

Excellent flexibility in configuration

  • Valve body: PVC-U, PVC-C, PP-H, PVDF
  • Seal: EPDM, FPM
  • Connection: true union (socket or spigot), flange
  • Connection standard: metric, US, JP
  • Can be designed with intelligent electric switch, regulating module, bus communication
  • Signal feedback, power rest, failure alarm

Electrical configuration

  • Voltage: AC/DC12-24V, AC/DC95-265V
  • Feedback: passive contact, active contact, potentiometer feedback
  • Optional: relay contact failure alarm
  • With super capacitor, auto reset after power-off is available.
  • Output regulation: 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V, 2-10V
  • Control regulation: 4-20mA
  • Bus control feedback: RS485(modbus), CANBus 2.0B, Mbus
  • Protection rating: IP67

Application

  • New energy
  • Integrated circuit
  • Electroplate
  • Power industry
  • Metallurgy
  • Chemical engineering
  • Water treatment
  • Papermaking
  • Bio pharmacy
  • Food & beverage
Contact Us
Building A2, Hengli Industrial Park, Tongde, Baolong Sub-District, Longgang District, Shenzhen City, Guangdong Province, China
shengzhou.zhang@koscn.com
Shengzhou Zhang
+86-13823725628
+86-755-25325380

Get in Touch

Manual Ball Valve, BV200
Manual Ball Valve, BV200

BV200 manual ball valve features standard design, large flow rate and small torque. The optimized locking mechanism allows installation in two directions.

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 10
    1. Seal
      EPDM, FPM
More
Electric Ball Valve, BV201
Electric Ball Valve, BV201

BV201 electric ball valve is a multifunctional plastic valve to offer various functions including intelligent switch control, flow regulating, signal feedback, auto reset, failure alarm.

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 10
    1. Seal
      EPDM, FPM
More

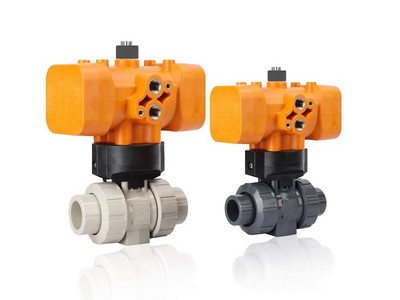

Pneumatic Ball Valve, BV202
