Chemical Liquid Valves, DV310

Plastic Pneumatic Diaphragm Valve for Pharmaceutical, Chemical and Hygienic Applications

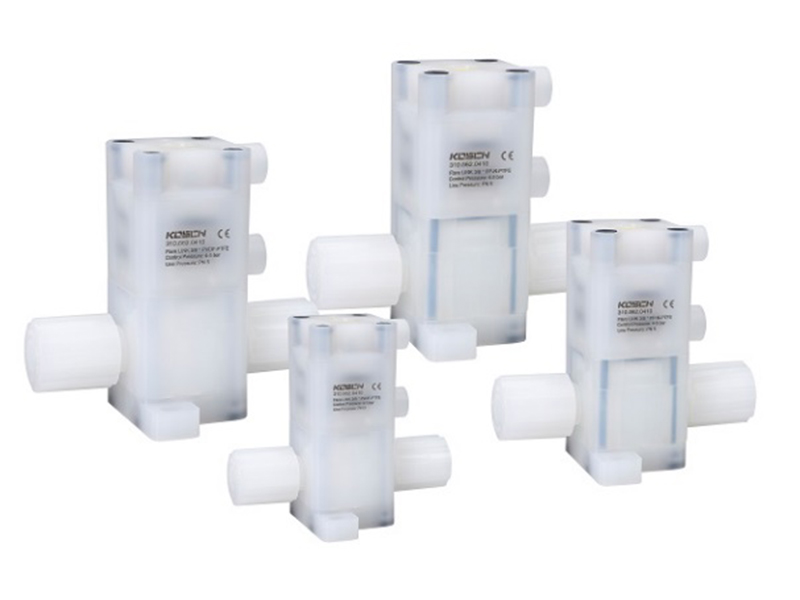

Chemical Liquid Valves, DV310

DV310 plastic pneumatic diaphragm with compact design valves feature excellent corrosion and heat resistance. With smooth inner wall and low ion precipitation, this pneumatic diaphragm valves are ideal for applications requiring high cleanness, such as pharmaceutical, chemical, and hygienic applications. A vast selection of valve materials improves the application versatility with the most economic price-performance ratio. The diaphragm valves are in accordance with requirements of FDA 177-1520/177-1550 dissolution test.

Contact Us

Specifications

    1. Size
      3/8", 1/2"
    1. Pressure Level
      PN 5
    1. Body Material
      PP-Natural, PVDF, PFA
    1. Diaphragm
      PTFE
    1. Connection
      UNF threaded flare
    1. Standard
      SEMI standard F65-1101
    1. Work temperature
      5~100℃

Features

Easy maintenance and operation

  • Full plastic housing design for aesthetic appearance and high corrosion resistance
  • Compact design, easy maintenance, and installation
  • UNF threaded flare connection with high compatibility and interchangeability
  • Installation panel size complies with SEMI standard F65-1101

Outstanding safety

  • In compliance with requirements of FDA 177-1520/177-1550 dissolution test
  • Triple seal valve diaphragm construction for no leakages
  • Fluororesin actuator with high pressure bearing capacity
  • Curved PTFE diaphragm with better ductility and higher lifespan

Excellent flexibility in configuration

  • Medium wetted parts: PP-Natural, PVDF, PFA
  • Diaphragm: PTFE
  • Cylinder: PVDF
  • Seals: FKM/EPDM optional
  • Structural parts: PVDF
  • Four installation directions available for actuator pilot ports

Application

  • PV
  • LCD
  • HDD manufacturing
  • Semiconductor
  • Electroplate
  • Integrated ciruit
  • Bio pharmacy
  • Medical
  • Food and beverage
  • New materials
