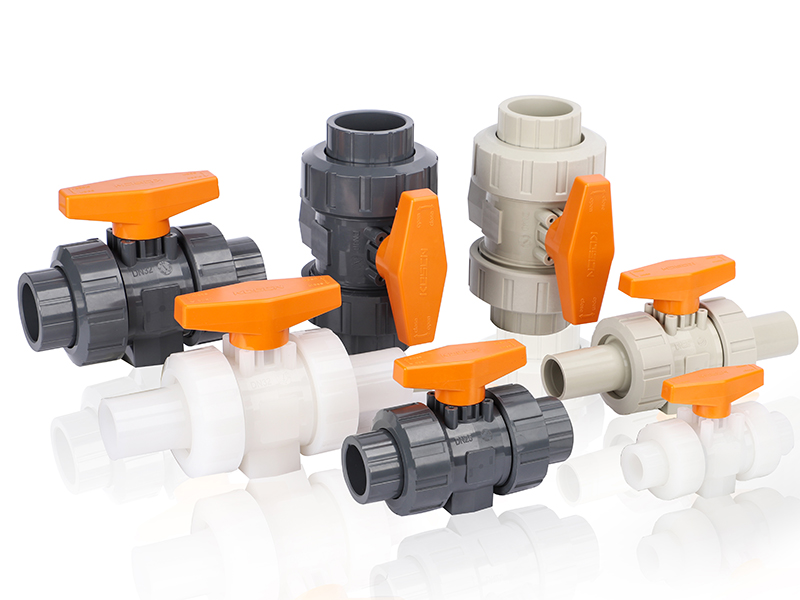

Manual Ball Valve, BV200

Manually Operated Control Ball Valve in Plastic

Manual Ball Valve, BV200

BV200 manual ball valve features standard design, large flow rate and small torque. The optimized locking mechanism allows installation in two directions.

Contact Us
Datasheet

Specifications

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 10
    1. Body Material
      PVC-U, PVC-C, PP-H, PVDF
    1. Seal
      EPDM, FPM
    1. Connection
      true union (socket or spigot), flange
    1. Standard
      ISO 5211 standard

Features

Easy installation and maintenance

  • The optimized locking mechanism of ball valve allows installation in two directions.
  • Switch direction indication on the handwheel
  • ISO 5211 standard design with easy maintenance
  • Mounting base provided

Outstanding safety

  • Trapezoidal threaded union to prevent pop-off
  • Double seal valve base with low torque and without internal leakage
  • Broadest range of materials optional including high temperature and corrosion resistant materials

Excellent flexibility in configuration

  • Valve body: PVC-U, PVC-C, PP-H, PVDF
  • Seal: EPDM, FPM
  • Connection: true union (socket or spigot), flange
  • Connection standard: metric, US, JP

Application

  • Water treatment
  • PV
  • Integrated circuit
  • Electroplate
  • Glass panel
  • Electronic semiconductor
  • Power industry
  • Metallurgy
  • Petrochemical industry
  • Chemical engineering
  • Wind energy
  • Papermaking
  • Pharmacy
  • Food & beverage
  • Chlor-Alkali
Contact Us
Building A2, Hengli Industrial Park, Tongde, Baolong Sub-District, Longgang District, Shenzhen City, Guangdong Province, China
+86-755-25325380

Get in Touch

Manual Ball Valve, BV200
Manual Ball Valve, BV200

BV200 manual ball valve features standard design, large flow rate and small torque. The optimized locking mechanism allows installation in two directions.

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 10
    1. Seal
      EPDM, FPM
More
Electric Ball Valve, BV201
Electric Ball Valve, BV201

BV201 electric ball valve is a multifunctional plastic valve to offer various functions including intelligent switch control, flow regulating, signal feedback, auto reset, failure alarm.

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 10
    1. Seal
      EPDM, FPM
More
Pneumatic Ball Valve, BV202
Pneumatic Ball Valve, BV202

BV202 pneumatic ball valve features all-plastic housing and light-weight and corrosion-free part-turn pneumatic actuator. This ball valve delivers functions like switch control, flow regulation, signal feedback, auto reset and failure alarm.

    1. Size
      DN 15/20/25/32/40/50
    1. Pressure Level
      PN 10
    1. Seal
      EPDM, FPM
More

KOSCN is a professional manufacturer of flow control products. Our product range includes plastic valves, pneumatic actuators, pressure sensors and piping systems. We offer industrial plastic valves in various sizes, of different materials and for different pressure ranges, guaranteeing the right valve for any piping system. Manual, pneumatic, or electric actuators for valves are optional to best fit your application requirements.
Our plastic valves and piping systems are good low-cost solutions for flow control needs in various applications, including waste/wastewater disposal, chemical processing, metallurgy, landfill leachate processing, integrated circuit manufacturing, semiconductor manufacturing, glass panel processing, food and beverage, paper making, power industry, bio pharmacy and more.
KOSCN has obtained multiple patents and is a national high-tech enterprise. We have professional teams for product design and development, manufacturing, mold production, injection molding and quality control. Our quality management system is in strict accordance with ISO9001, ISO140001, ISO45001 to ensure the excellent reliability and outstanding durability of products.
