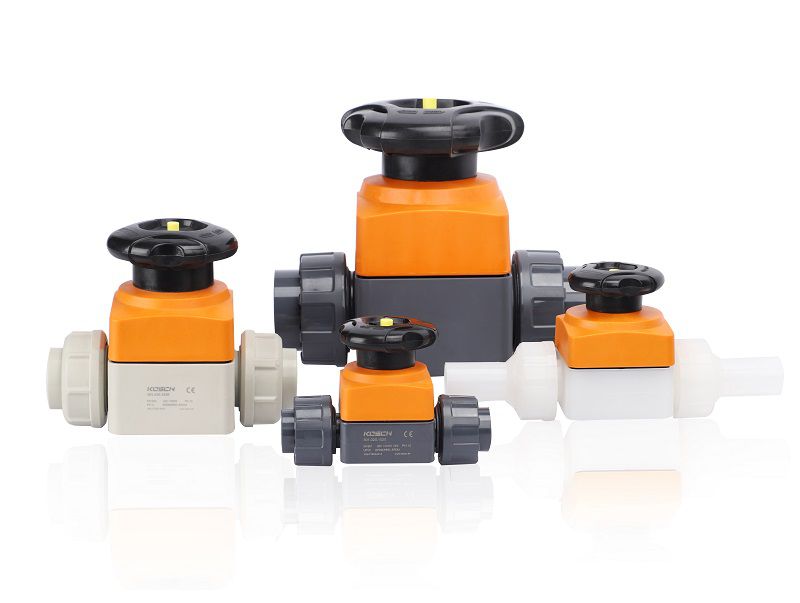

Manual Diaphragm Valve, MV301

Plastic Manual Diaphragm Valve, MV301

Manual Diaphragm Valve

MV301 manual diaphragm valve is a newly developed membrane valve with multifunctional regulating modules, ergonomic design, limit switches and locking system. Suspension type diaphragm coupling mechanism and smoothened flow passage enable the best flow performance.

Contact Us
Operating Instruction Datasheet

Specifications

    1. Size
      DN 15/20/25/32/40/50/65
    1. Pressure Level
      PN 10
    1. Body Material
      PVC-U, PVC-C, PP-H, PP-Natural, PVDF
    1. Diaphragm
      EPDM, FPM, EPDM-PTFE
    1. Connection
      flange, spigot, true union (socket or spigot)
    1. Standard
      DIN, JIS, ANSI

Features

Easy installation and maintenance

  • Snap fit and thread connections for easy mounting and dismounting
  • Full plastic housing design for aesthetic appearance and high corrosion resistance
  • Accurate screw fit clearance for smooth operations and maintenance
  • Same installation length as market standard valves
  • Integrated optical position feedback with easy observations
  • Ergonomic regulating modules
  • There is a lockout on the handwheel for precise opening and shutoff control.

High safety

  • Limit switches and over torque protection for diaphragm mechanism
  • Suspension type diaphragm coupling mechanism to protect the diaphragm
  • Handwheel lockout with padlock available

Excellent flexibility in configuration

  • Connection: flange, spigot, true union (socket or spigot)
  • Oil free options available for some manual diaphragm valves

Best flow control performance

  • Linear flow characteristics for easy liquid regulating
  • Double flow rate due to unique smoothened valve flow passage design
  • Suitable for media containing a small number of particles and solids

Application

  • Landfill leachate treatment
  • PV
  • PCB
  • Electroplate
  • LCD
  • Semiconductor
  • Papermaking
  • Mining & metallurgy
